BNC Plugs & Sockets

We are making available a broad range of BNC Plugs & Sockets that are ideal for power and video. The chief application of these connectors is in test instruments, television, video signals, radio, and other electronic equipments and so on. These are compact in design, light in weight and simple to set up. The sockets we offer are manufactured with premium grade components under the supervision of highly qualified personnel. These are built with top notch technology to give effective performance. With precision in the functionality these are well recognized for their compatibility with varied devices. Our gamut of BNC Plugs & Sockets is easily manageable.
Product Image (J 133 )

BNC Socket

  • Application:Connecting Coaxial Cable
  • Cable Type:Coaxial
  • Color:Other, Silver
  • Connector:Male/Plug
  • Material:Metal
Send Inquiry
Request To Call Back

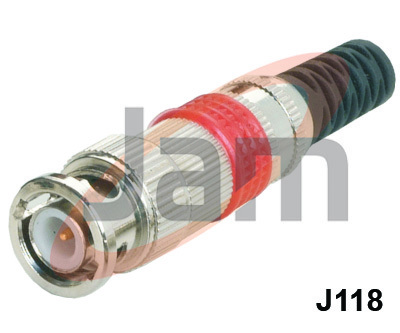

Product Image (J 118 )

BNC Plug FM

  • Cable Type:Optical Fiber
  • Color:Black
  • Jacket Material:PVC
  • Delivery Time:4-5 Days
Send Inquiry
Request To Call Back
Product Image (J 203 )

BNC Socket Crimp Type (Derlin)

  • Color:Other, Black/White (Derlin Insulator)
  • Connector Type:Other, BNC Socket Crimp Type
  • Female End Type:Socket (Female)
  • Flame Resistance Level:Standard
  • Material:Other , Brass Body, Nickel Plated; Derlin Insulator
  • Outer Diameter:Approx. 9.6 mm
  • Pairs:Single
  • Voltage Rating:500V rms Max
Send Inquiry
Request To Call Back
Product Image (J 247 )

BNC PLUG WITH METAL CAP & SPRING ( FULL GOLD PLATE

  • Application:Video, RF, CCTV, Broadcast, Test Equipment
  • Capacity:Up to 50 Ohm impedance
  • Color:Other, Gold
  • Insulation:PTFE (Polytetrafluoroethylene)
  • Number of Conductor:Single Core
  • Outer Diameter:Standard BNC Plug diameter (approx. 14 mm)
  • Pairs:Single Pair
  • Voltage Rating:Maximum 500V
Send Inquiry
Request To Call Back
Product Image (J 250 )

BNC PLUG ANGLE CLAMP TYPE FOR RG-58 CABLE

  • Cable Length:As per cable used
  • Color:Other, Silver (Body), White (Insulator)
  • Flame Resistance Level:Basic (Depends on cable sleeve)
  • Insulation:PTFE (Teflon)
  • Number of Conductor:1
  • Pairs:Single
  • Voltage Rating:500V RMS (max)
  • Wire Gauge:20 AWG (Approx)
Send Inquiry
Request To Call Back
Product Image (J 135 )

BMC Socket Panel Mounting

  • Cable Type:other, Not Included
  • Connector:Socket
  • Connector Type:Other, Panel Mounting Socket
  • Female End Type:Round Pin Socket
  • Jacket Material:Other, High Strength BMC
  • Length:Panel Mount (Fixed)
  • Material:Other , BMC (Bulk Molding Compound), Copper Contacts
  • Sheild:BMC (Bulk Molding Compound)
Send Inquiry
Request To Call Back
Product Image (J 119 )

BNC Plug Industrial (PTFE)

  • Application:Industrial, Test & Measurement, CCTV, RF Applications
  • Capacity:50 Ohm Impedance
  • Color:Other, Silver/White
  • Number of Conductor:Single Core
  • Outer Diameter:5 mm (Typical)
  • Pairs:Single Pair
  • Voltage Rating:500V RMS
  • Wire Gauge:26 AWG
Send Inquiry
Request To Call Back
Product Image (J 121 )

BNC Terminator Available in 50 75 93 OHMS

  • Color:Other, Silver
  • Connector:BNC
  • Female End Type:BNC Female
  • Flame Resistance Level:Standard
  • Outer Diameter:Standard BNC size
  • Sheild:Yes
  • Voltage Rating:500V max
Send Inquiry
Request To Call Back
Product Image (J 136 )

BMC Socket Panel Mounting (PTFE)

  • Cable Type:other, Single Core, Hook Up Wire
  • Connector:Socket, Panel Mounting
  • Connector Type:Other, Panel Mount, Female
  • Jacket Material:PTFE
  • Length:Customizable as per requirement
  • Male End Type:Pin (Counterpart in system)
  • Material:Other , BMC (Bulk Molding Compound), PTFE Contacts
  • Sheild:Unshielded
Send Inquiry
Request To Call Back
Product Image (J 134 )

BNC Socket (PTFE)

  • Application:RF, Audio/Video, Test Equipment, Instrumentation
  • Female End Type:BNC Socket (Female)
  • Flame Resistance Level:High (PTFE insulation provides excellent resistance)
  • Insulation:PTFE (Polytetrafluoroethylene)
  • Number of Conductor:Single
  • Outer Diameter:Approx 9 mm
  • Pairs:Single
  • Voltage Rating:500V RMS (Maximum)
Send Inquiry
Request To Call Back
Product Image (J 230 )

BNC Plug Crimping Type 213U Cable

  • Capacity:75 Ohms Impedance
  • Color:Other, Silver
  • Flame Resistance Level:Standard
  • Number of Conductor:1
  • Outer Diameter:7.5 mm
  • Pairs:Single
  • Voltage Rating:500V
  • Wire Gauge:23 AWG
Send Inquiry
Request To Call Back
Product Image (J 162 )

BNC Socket Industrial (PTFE)

  • Cable Type:other, Coaxial compatible
  • Color:Other, Silver
  • Connector:BNC Female Socket
  • Connector Type:Other, Bayonet NeillConcelman (BNC)
  • Flame Resistance Level:High, PTFE provides excellent flame resistance
  • Length:Standard as per connector size
  • Sheild:Yes, Full Metal Shielded
  • Voltage Rating:500V RMS
Send Inquiry
Request To Call Back
Product Image (J 128 )

BNC Plug Self Crimping Type (PTFE)

  • Capacity:Up to 500 V
  • Color:Other, Silver
  • Insulation:PTFE (Polytetrafluoroethylene)
  • Number of Conductor:1
  • Outer Diameter:14 mm approx (plug body)
  • Pairs:Single
  • Voltage Rating:500 V RMS
  • Wire Gauge:Compatible with RG58, RG59, and similar
Send Inquiry
Request To Call Back
Product Image (J 249 )

BNC PLUG RIGHT ANGLE CRIMP TYPE RG-58 PTFE

  • Cable Length:Not included
  • Connector:BNC Plug (Male)
  • Connector Type:Other, Right Angle Crimp Type
  • Insulation:PTFE (Polytetrafluoroethylene)
  • Jacket Material:Other, Depends on cable; connector body is metallic
  • Length:Depends on attached cable; connector only
  • Male End Type:BNC Plug Right Angle
  • Sheild:Single shielded
Send Inquiry
Request To Call Back
Product Image (J 231 )

BNC Socket PCB Mounting Type ( PTFE )

  • Color:Other, Silver
  • Connector Type:Other, PCB Mounting Type, BNC Socket
  • Female End Type:BNC Socket
  • Flame Resistance Level:High, PTFE Insulation
  • Material:Other , Brass Body, Nickel Plated; PTFE Insulator
  • Outer Diameter:Approx. 9.5 mm
  • Sheild:Yes, Metal Body Shielded
  • Voltage Rating:500V max
Send Inquiry
Request To Call Back

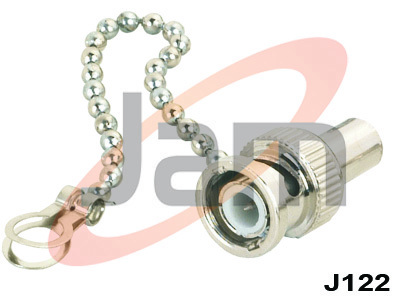

Product Image (J 122 )

BNC Terminator With Chain Available in 50 75 93

  • Capacity:Available in 50 Ohm, 75 Ohm, 93 Ohm
  • Color:Other, Nickel Silver (as per image)
  • Female End Type:BNC Female
  • Insulation:Metal body, no typical insulation
  • Outer Diameter:Approx. 10 mm (BNC standard)
  • Voltage Rating:Up to 500V rms max (typical)
Send Inquiry
Request To Call Back
Product Image (J 188 )

BNC Socket Cap Type

  • Cable Type:other, Coaxial Cable
  • Capacity:50 Ohm
  • Connector:BNC Socket Cap Type
  • Connector Type:Other, Bayonet (BNC)
  • Insulation:PTFE Insulated
  • Material:Other , Brass (Nickel Plated)
  • Outer Diameter:Approx. 10 mm
  • Sheild:Metal Shielded
Send Inquiry
Request To Call Back
Product Image (J 129 )

BNC Plug Clamp Type 213 U (PTFE)

  • Application:RF, video, test equipment, and communication
  • Capacity:Standard for RG coaxial connectors
  • Color:Other, Metallic Silver
  • Flame Resistance Level:High (PTFE is flame resistant)
  • Insulation:PTFE (Polytetrafluoroethylene)
  • Outer Diameter:Depends on cable used
  • Voltage Rating:500V RMS
  • Wire Gauge:Applicable for standard RG cables
Send Inquiry
Request To Call Back
Product Image (J 229 )

BNC Plug Crimping Type RG58U Cable ( PTFE ) Reve

  • Application:RF, CCTV, Video Transmission, Test Equipment
  • Flame Resistance Level:High (PTFE) UL Approved
  • Insulation:PTFE
  • Number of Conductor:1
  • Outer Diameter:4.95 mm
  • Pairs:Single
  • Voltage Rating:1,900 Volts RMS max
  • Wire Gauge:20 AWG
Send Inquiry
Request To Call Back
Product Image (J 117 )

BNC Plug

  • Application:CCTV, coaxial cable connections, RF, test instruments
  • Color:Other, Nickel-plated
  • Female End Type:BNC Jack (for mating)
  • Insulation:Dielectric (Teflon or PE depending on application)
  • Number of Conductor:Single core
  • Outer Diameter:Standard BNC connector: approx. 14 mm
  • Pairs:Single pair
  • Temperature:Operating range -40C to +85C
Send Inquiry
Request To Call Back
Product Image (J 120 )

BNC Plug Crimping Type

  • Application:CCTV, Test Equipment, RF Transmission, Coaxial Connections
  • Capacity:Standard
  • Color:Other, Nickel Plated
  • Flame Resistance Level:Standard
  • Insulation:PTFE or PE
  • Number of Conductor:Single
  • Outer Diameter:Fits RG type cable sizes
  • Voltage Rating:500V RMS Max
Send Inquiry
Request To Call Back
