Banana Plugs & Sockets

We are committed in offering high quality gamut of Banana Plugs & Sockets. These are small cylindrical plugs that ensure a slid and secure connection between the devices. They have a bulged prong with which they got their name that helps in insertion into a socket for a perfect connection. These are majorly used for bare wire terminations when connecting speakers to receivers. The plugs allow a simple, safe and secure connection between terminal and speaker wire. Banana Plugs & Sockets are manufactured with high grade metal or plastic that attach to the end of the speaker wire.
Product Image (J 238 )

4 MM Banana Plug Moulding Type

  • Capacity:Standard current: Up to 16A continuous
  • Insulation:PVC Insulation Moulded Housing
  • Jacket Material:PVC
  • Number of Conductor:Single (for each plug)
  • Outer Diameter:4 mm (connector pin diameter)
  • Pairs:Sold individually or in pairs (red and black)
  • Voltage Rating:Up to 1000V DC (depend on assembly)
  • Wire Gauge:Compatible up to 18 AWG (dependent on cable used)
Send Inquiry
Request To Call Back
Product Image (S 90 )

4mm Banana Socket DLX

  • Capacity:Rated up to 15A
  • Flame Resistance Level:Standard
  • Number of Conductor:Single
  • Outer Diameter:Approximately 8mm
  • Pairs:Single
  • Sheild:No
  • Voltage Rating:1000V
  • Wire Gauge:4mm
Send Inquiry
Request To Call Back
Product Image (J 18 )

Banana Plug 4 mm

  • Color:Red
  • Jacket Material:PVC
  • Delivery Time:4-5 Days
Send Inquiry
Request To Call Back
Product Image (S 155 )

4 MM banana plug non stacable

  • Application:Testing and Measurement
  • Cable Length:Variable (custom as per requirement)
  • Color:Other, Red and Black
  • Jacket Material:PVC
  • Length:Variable (based on requirement)
  • Material:Other , Nickel Plated Brass
  • Sheild:None
  • Voltage Rating:Up to 30V
Send Inquiry
Request To Call Back
Product Image (S 16 )

Banana Socket

Send Inquiry
Request To Call Back
Product Image (J 169 )

15-Amp. Binding Post Terminal

  • Capacity:15 Amp
  • Flame Resistance Level:Standard
  • Insulation:Plastic Insulated
  • Number of Conductor:Single
  • Outer Diameter:Approx. 10 mm
  • Pairs:Single
  • Voltage Rating:1000V
  • Wire Gauge:18 AWG
Send Inquiry
Request To Call Back
Product Image (J 237 )

4 mm Banana Plug Chasis Type

  • Application:Electrical test equipment, speaker connections, laboratory instrumentation
  • Color:Other, Red and Black
  • Connector Type:Other, Chassis Mount
  • Female End Type:Chassis socket
  • Length:Panel mount type, no wire included
  • Material:Other , Brass body with nickel plating, plastic housing
  • Outer Diameter:4 mm plug diameter
  • Pairs:Single
Send Inquiry
Request To Call Back
Product Image (J 167 )

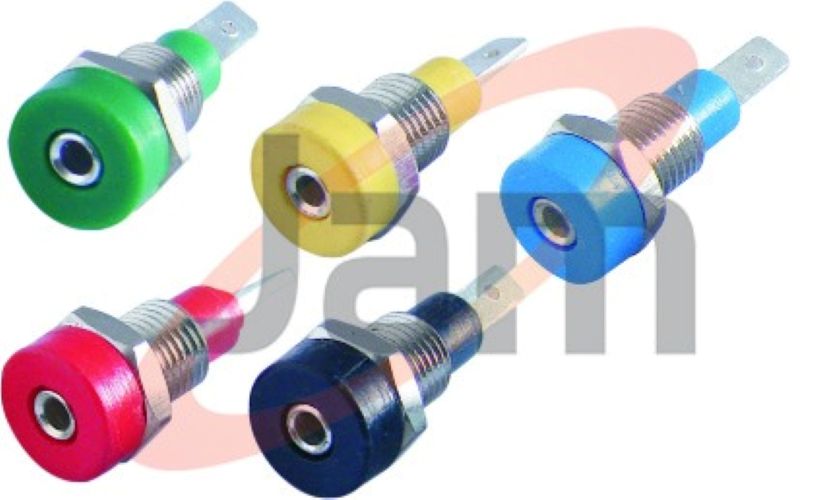

2 mm Banana Socket

  • Application:Test & measurement equipment, laboratory power supplies
  • Connector Type:Other, Panel mount
  • Insulation:Polypropylene
  • Number of Conductor:1
  • Outer Diameter:Fits standard 2 mm sockets
  • Pairs:Single
  • Sheild:Unshielded
  • Voltage Rating:Maximum 60V
Send Inquiry
Request To Call Back
Product Image (S 126 )

4 mm stacable plug

  • Cable Type:other, Test lead compatible
  • Capacity:Suitable for low/medium power circuits
  • Flame Resistance Level:Standard
  • Insulation:PVC
  • Pairs:Single
  • Temperature:Up to 70C
  • Voltage Rating:Up to 30V AC / 60V DC
  • Wire Gauge:4 mm
Send Inquiry
Request To Call Back
Product Image (J 201 )

2 mm Banana plug with Wire type spring

  • Cable Type:other, Flexible Test Lead Wire
  • Flame Resistance Level:Standard PVC Flame Retardant
  • Insulation:PVC Insulated
  • Number of Conductor:Single
  • Outer Diameter:2 mm (Plug Diameter)
  • Pairs:Single Pair (Plug)
  • Voltage Rating:Up to 30V AC / 60V DC
  • Wire Gauge:Up to 22 AWG
Send Inquiry
Request To Call Back
Product Image (J 236 )

2 mm Banana Plug Rear Extension Type for Moulding

  • Cable Length:Dependent on application; typically wire inserted and fixed
  • Color:Other, Red, Black, Yellow, Green, Blue, Grey (multiple options available)
  • Connector Type:Other, Plug and Rear Extension Socket
  • Jacket Material:Other, Moulded insulation plastic
  • Length:Customizable as per moulding requirements
  • Material:Other , Brass (contact pin), plastic (housing/insulation)
  • Number of Conductor:Single
  • Outer Diameter:Approx. 6 mm
Send Inquiry
Request To Call Back
Product Image (J 206 )

2mm Banana Plug Stackable With Wire Type Spring

  • Cable Type:other, Compatible with stranded or solid wire
  • Capacity:Up to 10A continuous current
  • Insulation:PVC (Polyvinyl Chloride)
  • Number of Conductor:Single conductor
  • Outer Diameter:2mm (plug pin diameter)
  • Pairs:Single plug, stackable
  • Voltage Rating:30V AC/60V DC max
  • Wire Gauge:Up to 22 AWG
Send Inquiry
Request To Call Back
Product Image (S 127 )

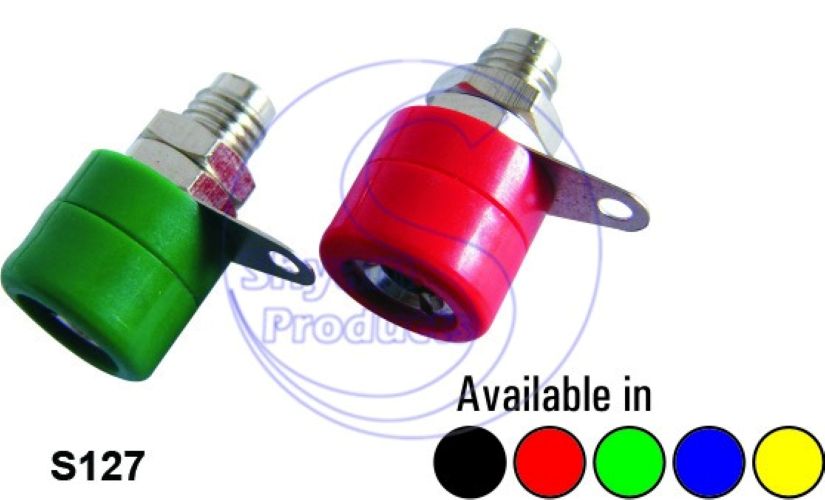

4 mm socket Industrial

  • Application:Industrial electrical connectivity
  • Cable Length:Custom or standard lengths
  • Color:Other, Silver
  • Connector:4 mm industrial socket
  • Female End Type:4 mm socket
  • Jacket Material:PVC
  • Length:Custom lengths available
  • Male End Type:Compatible 4 mm plug
Send Inquiry
Request To Call Back
Product Image (S 139 )

U Terminal Set

  • Application:Electrical connections, Wiring harness, Industrial & Automotive
  • Cable Length:Depends on Application
  • Capacity:Up to 600V
  • Color:Other, Assorted (Red, Blue, Yellow)
  • Jacket Material:PVC
  • Length:Standard Pack Lengths
  • Material:Other , Copper with Tin Plating
  • Sheild:Yes
Send Inquiry
Request To Call Back
Product Image (J 170 )

30-Amp. Binding Post Terminal

  • Application:Panel Mount, Amplifier, Speaker, Test Equipment
  • Insulation:Plastic Insulated
  • Jacket Material:Other, Plastic cap
  • Pairs:Single pair
  • Sheild:None
  • Temperature:Up to 75C
  • Voltage Rating:Up to 100V
  • Wire Gauge:Supports multiple gauges up to 30A capacity
Send Inquiry
Request To Call Back
Product Image (J 242 )

15 AMP BINDING POST TERMINAL- ABS MOULD

  • Application:Electrical and Audio Connections
  • Capacity:15 Amp
  • Color:Other, Red and Black
  • Flame Resistance Level:High
  • Insulation:ABS Mould
  • Material:Other , ABS Plastic, Metal (Brass/Copper Alloy)
  • Voltage Rating:Up to 1000V
Send Inquiry
Request To Call Back
Product Image (J 168 )

5-Amp. Binding Post Terminal

  • Capacity:5 Amps
  • Insulation:Molded PVC Insulation
  • Length:Standard Post Length 28 mm
  • Number of Conductor:Single Conductor
  • Outer Diameter:13 mm
  • Pairs:Single Piece or Pairs
  • Voltage Rating:Up to 60V DC
  • Wire Gauge:Accepts up to 12 AWG
Send Inquiry
Request To Call Back
Product Image (J 19 )

Banana Plug 4 mm DLX

  • Application:Electrical Testing, Speaker Connection
  • Cable Length:As required
  • Color:Other, Red, Black
  • Jacket Material:PVC
  • Length:Customizable / As per requirement
  • Material:Other , Brass (Connector), PVC (Insulation)
  • Pairs:Single Pair
  • Sheild:Unshielded
Send Inquiry
Request To Call Back
Product Image (S 98 )

4 mm Banana Socket ( Economy)

  • Application:Electrical Measurement, Laboratory, Testing etc.
  • Color:Red
  • Flame Resistance Level:Standard
  • Insulation:Plastic Insulation
  • Jacket Material:Other, Plastic
  • Material:Other , Nickel Plated Brass with Plastic Housing
  • Sheild:No
  • Voltage Rating:Up to 30V AC / 60V DC
Send Inquiry
Request To Call Back
Product Image (J 166 )

Banana Plug Industrial Wire Type Spring

  • Cable Type:other, Test Lead
  • Connector Type:Other, Spring Type
  • Flame Resistance Level:Standard
  • Insulation:PVC
  • Number of Conductor:Single
  • Outer Diameter:Approx. 4 mm
  • Pairs:Single
  • Voltage Rating:Up to 1000V
Send Inquiry
Request To Call Back
Product Image (J 243 )

2 MM BANANA SOCKET PCB TYPE

  • Application:PCB Mount Test & Measurement, Laboratory Instruments
  • Capacity:Low current connectivity
  • Flame Resistance Level:Standard
  • Insulation:None
  • Outer Diameter:6mm (approx)
  • Pairs:Single Socket
  • Temperature:Up to 80C
  • Voltage Rating:up to 30V DC
Send Inquiry
Request To Call Back
