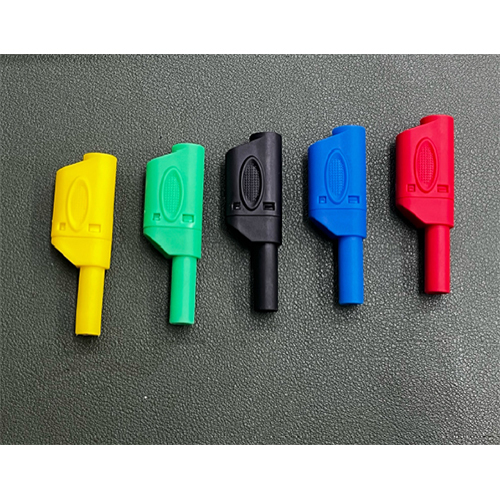

Send InquiryS-197 4mm Sheathed Banana Plug
Price 70 INR/ Piece
MOQ : 100 Pieces
S-197 4mm Sheathed Banana Plug Specification
- Connector
- 4mm Banana Plug
- Female End Type
- 4mm Sheathed Socket
- Temperature
- -20C to +70C
- Material
- Brass
- Male End Type
- 4mm Sheathed Banana Plug
- Voltage Rating
- 600V / Max.32A
- Pairs
- Single (per plug)
- Application
- Laboratory testing, electrical measurements, instrument connections
- Connector Type
- Banana Plug
- Flame Resistance Level
- Standard PVC flame retardant
- Cable Type
- Banana Plug to Banana Plug / custom
- Insulation
- PA
- Outer Diameter
- Approximately 8mm (with sheath)
- Jacket Material
- PVC
- Length
- Customizable / As per requirement
- Color
- Black / Red / Yellow / Blue / Green
- Wire Gauge
- Up to 4mm
- Number of Conductor
- Single
- Cable Length
- Custom / not included (plug only)
- RoHS Compliance
- Yes
- Current Rating
- 10A continuous
- Contact Plating
- Nickel or gold plated
- Contact Resistance
- <10 m
- Housing Type
- Fully insulated/sheath design
- Safety Standard
- IEC 61010 compliant
- Connection Method
- Screw or solder type rear termination
- Brand/Model
- S-197 4mm Sheathed Banana Plug
- Insertion Force
- Standard for 4mm sockets
S-197 4mm Sheathed Banana Plug Trade Information
- Minimum Order Quantity
- 100 Pieces
- Supply Ability
- 1000 Pieces Per Week
- Delivery Time
- 7 Days
About S-197 4mm Sheathed Banana Plug
Capitalise on the Elite S-197 4mm Sheathed Banana Plug-designed for praiseworthy performance in laboratory and electrical applications. Boasting a stellar current rating of 10A continuous, this plug is available in gold or nickel plating, ensuring longevity and minimal contact resistance (<10m). The fully insulated sheath and IEC 61010 compliance offer remarkable safety, while its adaptable rear termination supports both screw and solder connections. Customisable length, vigorous flame-resistance, and RoHS compliance guarantee an unbeatable price-to-value ratio for discerning professionals in India and beyond.
Astonishing Features for Reliable Measurements
The S-197 4mm Sheathed Banana Plug is specifically crafted for laboratory testing, precise electrical measurements, and secure instrument connections. Its robust brass contact with gold or nickel plating minimises resistance, while the fully insulated PVC sheath ensures user safety. This plug handles wires up to 4mm and features a standard insertion force for 4mm sockets, making it versatile for various praiseworthy test and measurement scenarios.
Supply Ability, Certifications and Sample Policy
Our S-197 4mm Sheathed Banana Plugs are always in stellar supply, ready to be shipped promptly upon order completion. We hold leading certifications including RoHS and strict compliance with IEC 61010 safety standards. If you wish to review the quality before a bulk purchase, samples can be provided-with nominal charges applied, deductible upon final order. Order with confidence, knowing quality is guaranteed from an elite manufacturer and supplier in India.
Astonishing Features for Reliable Measurements
The S-197 4mm Sheathed Banana Plug is specifically crafted for laboratory testing, precise electrical measurements, and secure instrument connections. Its robust brass contact with gold or nickel plating minimises resistance, while the fully insulated PVC sheath ensures user safety. This plug handles wires up to 4mm and features a standard insertion force for 4mm sockets, making it versatile for various praiseworthy test and measurement scenarios.
Supply Ability, Certifications and Sample Policy
Our S-197 4mm Sheathed Banana Plugs are always in stellar supply, ready to be shipped promptly upon order completion. We hold leading certifications including RoHS and strict compliance with IEC 61010 safety standards. If you wish to review the quality before a bulk purchase, samples can be provided-with nominal charges applied, deductible upon final order. Order with confidence, knowing quality is guaranteed from an elite manufacturer and supplier in India.
FAQ's of S-197 4mm Sheathed Banana Plug:
Q: How is the S-197 4mm Sheathed Banana Plug typically used?
A: The S-197 plug is commonly employed for laboratory testing, electrical measurements, and reliable instrument connections, providing secure and stable contacts in demanding environments.Q: What extra features does the S-197 Banana Plug offer for safety and durability?
A: It offers a fully insulated sheath design, IEC 61010 compliance, and robust flame-retardant PVC housing to ensure superior safety and extended plug life.Q: Where is the S-197 Banana Plug manufactured and supplied?
A: This praiseworthy product is manufactured and supplied by a leading brand in India, serving both domestic and global customers.Q: What is the process for ordering samples of the S-197 Banana Plug?
A: Simply request a sample while placing an inquiry. A nominal charge applies, which is deducted from your total when you proceed with your main order.Q: What benefit does the gold or nickel plating provide in the S-197 plug?
A: Gold or nickel plating significantly reduces contact resistance and enhances long-term reliability, making the plug a stellar choice for precision-critical tasks.Q: When will my order for S-197 Banana Plugs be shipped?
A: Orders are shipped promptly upon confirmation and completion, ensuring quick delivery to meet your project or application deadlines.
